表盘 简约全屏背景图表盘 (工程公开，可自行修改背景)

[lgc2333]

lgc2333 提交新资源：

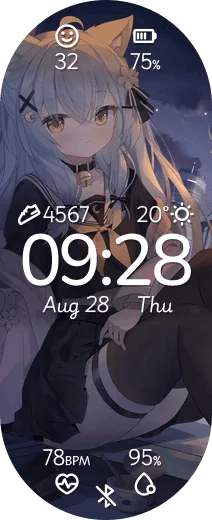

Unnamed (无名) - 全屏背景极简表盘 (工程及素材同时公开) - 没想好起什么名字。自己做的第一块表盘，纪念自己第一次折腾手环表盘的经历

浏览附件48949 浏览附件48950

设计思路

• 以背景为重，其上元素为辅，设计尽量简单（其实是自己没有审美只能想出来这种）
• 手环一定要能看并且方便看时间，所以在画面正中放个大数字时钟
• 继续完善数据展示，时钟上下及屏幕上下都能塞点

详细说明

• 点击心率、血氧、压力、天气会进入对应的页面
• 点击电量进入设置、点击时钟进入世界时钟、点击日期进入日程（本来想设置成日历的，发现没办法）、点击步数进入活力指标
• 蓝牙断连图标在已连接蓝牙时不会显示

制作历程与心得

主要使用 EasyFace 制作，使用 Mi Create 转为 GMF 格式后编辑工程，最后使用 GMF 打包
试用了...

阅读关于此资源更多信息...



[origin_1]

很好看的表盘😉👍



[lgc2333]

编译指南

你需要准备的：

• Mi Create: https://github.com/ooflet/Mi-Create
• GMF 打包工具: https://www.bandbbs.cn/threads/12120

步骤：

1. 使用 Mi Create 导出项目为 GMF 格式（如果你不想做，复制一份images文件夹命名为images_aod，之后下载附件中你想要的wfdef文件改名就成了一个GMF工程）
2. 转后的工程中有部分跳转代码空缺，请参考工程文件的 raw_resources/jump_code.yml 中的内容填写
附件中附参考文件，如果你不想自己动手改跳转代码的话
示例（此处原来是空的）：

3. 如有动态背景需求，请提前准备图片素材，之后打开导出的 wfDef.json，修改背景部分的代码（此部分代码我放在了工程的 raw_resources/element_anim.json 中，可以直接拿去替换）

改成这样，有多少帧写多少帧，animInterval指的是图片切换间隔，单位毫秒，这个表盘是15fps所以计算后四舍五入为67
（图片列表中间有一部分我省略掉了）

4. 改好后使用 wfpack64 打包



[MR_C_]

Hi，太感谢了，大大的赞，有“运动”、或者直接到运动项目的跳转jumpName和jumpCode不？

jumpArr: #跳转数据，name请取唯一值
- { "name": '卡包',"jumpName": 'cardBag' ,"jumpCode": [ "010ABF02", "010CBF02", "030ABF02", "030CBF02" ] }
- { "name": '秒表',"jumpName": 'stopwatch' ,"jumpCode": [ "010C0F02", "010A0F02", "030C0F02", "030A0F02" ] }
- { "name": '遥控拍照',"jumpName": 'photograph' ,"jumpCode": [ "010CCF01", "010ACF01", "030CCF01", "030ACF01" ] }
- { "name": '音乐',"jumpName": 'musicController' ,"jumpCode": [ "010C5F01", "010D5F01", "010A5F01" ] }
- { "name": '微信支付',"jumpName": 'wechatPayment' ,"jumpCode": [ "010D5F02", "030D5F02", "030C5F02", "010A5F02" ] }
- { "name": '倒计时',"jumpName": 'countdown' ,"jumpCode": [ "010C6F02", "010A6F02" ] }
- { "name": '闹钟',"jumpName": 'alarm' ,"jumpCode": [ "010C8F02", "010A8F02" ] }
- { "name": '小爱同学',"jumpName": 'AIVS' ,"jumpCode": [ "010CDF02", "010ADF02" ] }
- { "name": '查找手机',"jumpName": 'FindPhone' ,"jumpCode": [ "010C7F02", "010A7F02" ] }
- { "name": '设置',"jumpName": 'Setting' ,"jumpCode": [ "010C6F01" ] }
- { "name": '手电筒',"jumpName": 'Light' ,"jumpCode": [ "010CAF01" ] }
- { "name": '日历',"jumpName": 'Canlander' ,"jumpCode": [ "010CBF01" ] }
- { "name": '运动记录',"jumpName": 'SportRecord' ,"jumpCode": [ "010CDF01" ] }
- { "name": '支付宝',"jumpName": 'alipayPayment' ,"jumpCode": [ "010CEF01" ] }
- { "name": '女性健康',"jumpName": 'alipayPayment' ,"jumpCode": [ "010CFF01" ] }
- { "name": '番茄钟',"jumpName": 'potatoAlarm' ,"jumpCode": [ "010CAF03" ] }
- { "name": '世界时钟',"jumpName": 'World-clock' ,"jumpCode": [ "010CBF03" ] }
- { "name": '待办',"jumpName": 'To-do' ,"jumpCode": [ "010CCF03" ] }
- { "name": '手机静音',"jumpName": 'Phone-Mute' ,"jumpCode": [ "010CDF03" ] }
- { "name": '米家',"jumpName": 'Mi-Home' ,"jumpCode": [ "010CFF03" ] }
- { "name": '元气值',"jumpName": 'Viliaty' ,"jumpCode": [ "010C6F03" ] }
- { "name": '妙享中心',"jumpName": 'Mi-Share' ,"jumpCode": [ "01081F03" ] }
- { "name": '训练状态',"jumpName": 'Training' ,"jumpCode": [ "01099F03" ] }
- { "name": '呼吸',"jumpName": 'Breath' ,"jumpCode": [ "01094F00" ] }
- { "name": '启动器',"jumpName": 'Lancher' ,"jumpCode": [ "01081F00" ] }
- { "name": '睡眠',"jumpName": 'sleep' ,"jumpCode": [ "0300CF00" ] }
- { "name": '步数',"jumpName": 'step' ,"jumpCode": [ "03023F01" ] }
- { "name": '卡路里',"jumpName": 'calorie' ,"jumpCode": [ "03033F01" ] }
- { "name": '站立',"jumpName": 'stand' ,"jumpCode": [ "03043F01" ] }
- { "name": '活力指标',"jumpName": 'intensity' ,"jumpCode": [ "03053F01" ] }
- { "name": '心率',"jumpName": 'heartRate' ,"jumpCode": [ "03065F00" ] }
- { "name": '血氧',"jumpName": 'oxygen' ,"jumpCode": [ "0307EF00" ] }
- { "name": '压力',"jumpName": 'pressure' ,"jumpCode": [ "03083F00" ] }
- { "name": '电量',"jumpName": 'batteryLevel' ,"jumpCode": [ "03090C00" ] }
- { "name": '湿度',"jumpName": 'humidity' ,"jumpCode": [ "030B1F02" ] }
- { "name": 'UVI',"jumpName": 'UVI' ,"jumpCode": [ "030B1F02" ] }
- { "name": 'AQI',"jumpName": 'AQI' ,"jumpCode": [ "030B1F02" ] }
- { "name": '天气状况',"jumpName": 'weatherCondition' ,"jumpCode": [ "030B1F02", "010C1F02", "050B1F02", "050B1F02", ] }



[lgc2333]

Hi，太感谢了，大大的赞，有“运动”、或者直接到运动项目的跳转jumpName和jumpCode不？

jumpArr: #跳转数据，name请取唯一值
- { "name": '卡包',"jumpName": 'cardBag' ,"jumpCode": [ "010ABF02", "010CBF02", "030ABF02", "030CBF02" ] }
- { "name": '秒表',"jumpName": 'stopwatch' ,"jumpCode": [ "010C0F02", "010A0F02", "030C0F02", "030A0F02" ] }
- { "name": '遥控拍照',"jumpName": 'photograph' ,"jumpCode": [ "010CCF01", "010ACF01", "030CCF01", "030ACF01" ] }
- { "name": '音乐',"jumpName": 'musicController' ,"jumpCode": [ "010C5F01", "010D5F01", "010A5F01" ] }
- { "name": '微信支付',"jumpName": 'wechatPayment' ,"jumpCode": [ "010D5F02", "030D5F02", "030C5F02", "010A5F02" ] }
- { "name": '倒计时',"jumpName": 'countdown' ,"jumpCode": [ "010C6F02", "010A6F02" ] }
- { "name": '闹钟',"jumpName": 'alarm' ,"jumpCode": [ "010C8F02", "010A8F02" ] }
- { "name": '小爱同学',"jumpName": 'AIVS' ,"jumpCode": [ "010CDF02", "010ADF02" ] }
- { "name": '查找手机',"jumpName": 'FindPhone' ,"jumpCode": [ "010C7F02", "010A7F02" ] }
- { "name": '设置',"jumpName": 'Setting' ,"jumpCode": [ "010C6F01" ] }
- { "name": '手电筒',"jumpName": 'Light' ,"jumpCode": [ "010CAF01" ] }
- { "name": '日历',"jumpName": 'Canlander' ,"jumpCode": [ "010CBF01" ] }
- { "name": '运动记录',"jumpName": 'SportRecord' ,"jumpCode": [ "010CDF01" ] }
- { "name": '支付宝',"jumpName": 'alipayPayment' ,"jumpCode": [ "010CEF01" ] }
- { "name": '女性健康',"jumpName": 'alipayPayment' ,"jumpCode": [ "010CFF01" ] }
- { "name": '番茄钟',"jumpName": 'potatoAlarm' ,"jumpCode": [ "010CAF03" ] }
- { "name": '世界时钟',"jumpName": 'World-clock' ,"jumpCode": [ "010CBF03" ] }
- { "name": '待办',"jumpName": 'To-do' ,"jumpCode": [ "010CCF03" ] }
- { "name": '手机静音',"jumpName": 'Phone-Mute' ,"jumpCode": [ "010CDF03" ] }
- { "name": '米家',"jumpName": 'Mi-Home' ,"jumpCode": [ "010CFF03" ] }
- { "name": '元气值',"jumpName": 'Viliaty' ,"jumpCode": [ "010C6F03" ] }
- { "name": '妙享中心',"jumpName": 'Mi-Share' ,"jumpCode": [ "01081F03" ] }
- { "name": '训练状态',"jumpName": 'Training' ,"jumpCode": [ "01099F03" ] }
- { "name": '呼吸',"jumpName": 'Breath' ,"jumpCode": [ "01094F00" ] }
- { "name": '启动器',"jumpName": 'Lancher' ,"jumpCode": [ "01081F00" ] }
- { "name": '睡眠',"jumpName": 'sleep' ,"jumpCode": [ "0300CF00" ] }
- { "name": '步数',"jumpName": 'step' ,"jumpCode": [ "03023F01" ] }
- { "name": '卡路里',"jumpName": 'calorie' ,"jumpCode": [ "03033F01" ] }
- { "name": '站立',"jumpName": 'stand' ,"jumpCode": [ "03043F01" ] }
- { "name": '活力指标',"jumpName": 'intensity' ,"jumpCode": [ "03053F01" ] }
- { "name": '心率',"jumpName": 'heartRate' ,"jumpCode": [ "03065F00" ] }
- { "name": '血氧',"jumpName": 'oxygen' ,"jumpCode": [ "0307EF00" ] }
- { "name": '压力',"jumpName": 'pressure' ,"jumpCode": [ "03083F00" ] }
- { "name": '电量',"jumpName": 'batteryLevel' ,"jumpCode": [ "03090C00" ] }
- { "name": '湿度',"jumpName": 'humidity' ,"jumpCode": [ "030B1F02" ] }
- { "name": 'UVI',"jumpName": 'UVI' ,"jumpCode": [ "030B1F02" ] }
- { "name": 'AQI',"jumpName": 'AQI' ,"jumpCode": [ "030B1F02" ] }
- { "name": '天气状况',"jumpName": 'weatherCondition' ,"jumpCode": [ "030B1F02", "010C1F02", "050B1F02", "050B1F02", ] }

我能找到的就只有这些了



[MR_C_]

Mi Create 导出项目为 GMF 格式，这个过程中会出错吧，日期和时间会出问题，你有遇到这个问题吗？



[lgc2333]

Mi Create 导出项目为 GMF 格式，这个过程中会出错吧，日期和时间会出问题，你有遇到这个问题吗？

貌似没有，什么情况



[MR_C_]

貌似没有，什么情况

我EasyFace开发完毕后，用Mi Create转GMF格式，然后传入小米手环10，日期和小时是错的，直接EasyFace的文件传入手环，日期和时间都是对的。



[lgc2333]

我EasyFace开发完毕后，用Mi Create转GMF格式，然后传入小米手环10，日期和小时是错的，直接EasyFace的文件传入手环，日期和时间都是对的。

玄学说是，我也搞不懂



[MR_C_]

玄学说是，我也搞不懂

两个软件的数据源有差别。



[lgc2333]

两个软件的数据源有差别。

看看 Mi Create 里配置的设备类型？不应该啊，Mi Create 应该不会动来着



[MR_C_]

看看 Mi Create 里配置的设备类型？不应该啊，Mi Create 应该不会动来着



[MR_C_]

看看 Mi Create 里配置的设备类型？不应该啊，Mi Create 应该不会动来着

16：41，08/20，是EasyFace直接打包编译的，另一张就是Mi Create转GMF，wfpack64.exe编译的，小时和日期的天就不对。



[lgc2333]

浏览附件49078浏览附件49079
16：41，08/20，是EasyFace直接打包编译的，另一张就是Mi Create转GMF，wfpack64.exe编译的，小时和日期的天就不对。

晕，fprj文件本质上是一个xml，它的数据源ID是原封不动写在里面的，Mi Create转GMF之后应该不会动他……这个我真不知道了，你问问其他人吧



[MR_C_]

晕，fprj文件本质上是一个xml，它的数据源ID是原封不动写在里面的，Mi Create转GMF之后应该不会动他……这个我真不知道了，你问问其他人吧

我检查了wfDef.json，没发现问题，问题应该是出在编译成.bin文件时，应该是编译出了问题。
